Alfa Laval – Heat Exchangers

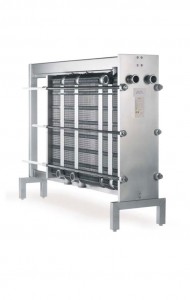

Alfa Laval FrontLine

The Alfa Laval FrontLine is a top-of-the-line series of plate heat exchangers. Able to meet the highest demands on hygienic control, it features a superior and flexible design.

that allows easy handling and modification.

Among the main applications for the Alfa Laval FrontLine are dairy pasteurization, yoghurt cooling, UHT treatment and work with heat- sensitive products. The Alfa Laval FrontLine frames can be supplied in stainless steel and silver-coated versions, and the Clip plates are available in alternative materials for challenging food-processing tasks. In most cases their Clip plates can be cleaned via CIP (cleaning- in-place), using the same flow as in the process itself.

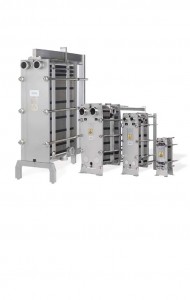

Alfa Laval BaseLine

With its cost-effective frame design, the Alfa Laval BaseLine series of plate heat exchangers is a com- petitive choice for process and utility duties. Working at pressures up to 10 bar, it handles not only heating and cooling, but also pasteurization.

Typical Alfa Laval BaseLine applications include simple pasteurization, raw milk cooling, media heating/cooling and CIP (cleaning-in-place) heating.

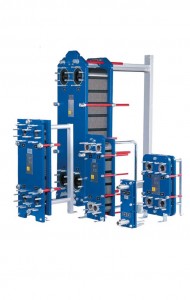

Alfa Laval M-series and T-series

The Alfa Laval M- and T-series can handle the same applications as the Alfa Laval BaseLine series. The difference is that the M- and T-series have epoxy- painted mild steel frames instead of the stainless steel frames used for the BaseLine series and can handle design pressures that exceed 10 bar. Perfect for general product heating and cooling duties, these plate heat exchangers can also be used for pharmaceutical water systems and CIP heating.

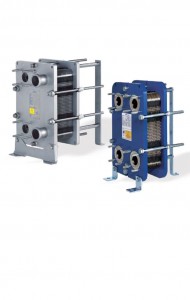

Alfa Laval TS6-M

Thanks to its unique plate geometry, Alfa Laval TS6-M series of plate heat exchangers is thermally optimized for steam condensation duties. This makes it useful not only for heating water, but also for heating CIP (cleaning-in-place) solution by means of steam.

Alfa Laval TS6-M plate heat exchangers are available with either stainless steel or epoxy- painted frames.

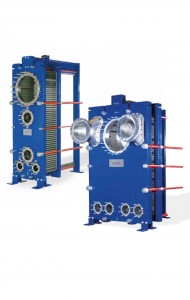

Alfa Laval AlfaCond and AlfaVap

A smart alternative to bulky and expensive falling film condensers and evaporators, these compact solutions feature deep channels, large ports and laser welding to enable vacuum and low-pressure evaporation and condensation for aqueous and organic systems.

The Alfa Laval AlfaCond plate condenser is designed for condensing vapours into liquids at low pressure. The Alfa Laval AlfaVap plate evaporator optimizes evaporation processes and provides a much higher thermal efficiency than conventional units.
