TAPTONE – Stratec CL

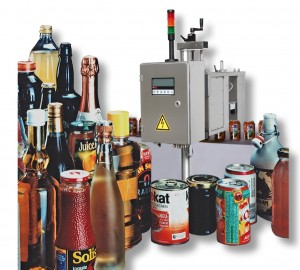

BBULL COMPACT LINE systems have been proven for many years as quality inspec- tion systems in production lines all over the world. The reliability and simplicity of the systems in connection with minimum installation requirements and an outstand- ing cost/benefit relation have made BBULL COMPACT LINE one of the most used in- spection systems in the beverage industry.

With the systems of the 2. generation, BBULL has adapted the proven concept to current technical requirements and possi- bilities.

For data processing and control, latest 32- bit processors allow improved processing with optimized performance and extend- ed features.

The big alphanumeric displays allow also the monitoring of uni-code signs in order to present the counters in all relevant lan- guages (e.g. Cyrillic, Chinese, …).

Operation is done by 6-key buttons and alternatively via windows-client by Ethernet connection.

Of course the BBULL COMPACT LINE sys- tems provide all required interfaces for connection to and in the customers net- work for data acquisition. Via intra- or in- ternet the systems can be operated and maintained by remote which allows sav- ings in service and maintenance.

During design of the systems all relevant direction has been considered to fulfil all requirements of the CE conformity.

Important Features

Inputs for external inspection on the conveyor

Inputs for label inspection in the machine (presence)

Synchronisation of the shift register with the conveyor speed via encoder

Serial fault detection self diagnosis

Manual height adjustment via spindle with digital counter

Compact design, inspection bridge and controller in one unit

Minimum space requirement

Minimum installation efforts

High reliability and accuracy

Inspection for underfill and overfill (separate bridges)

Cap inspection integrated in the inspection bridge



Simple operation by 6 key buttons remote operation by windows client

Monitoring of production counters by alphanumeric display (4×20 signs)

Interface in local language (also Cyrillic, Chinese, Korean,..)

Password protection

Production data acquisition (24 h)

Production data can be collected via web interface

Data backup on laptop via Ethernet interface

ODA interface via Ethernet (Weihen- stephaner protocol)

Remote diagnosis by network / internet


For glass, PET and canning lines

Independent from bottle format and variety

Installation on the conveyor, after filler, pasteurizer or labeler

Underfill inspection

Overfill inspection (separate bridge)

Cap presence inspection

Label presence inspection on the conveyor

Label presence inspection in the machine
