Instrumentation – Thermometer
T500

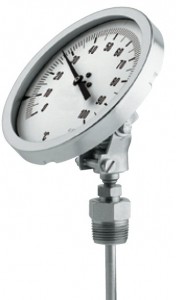

BIMETAL THERMOMETERS
All stainless steel | Short response time | With or without external zero adjustment
CASE DIAMETER
100,125 and 150 mm
ACCURACY CLASS
1 per EN 13190
TEMPERATURE RANGE
From – 70 to + 500 °C
AMBIENT TEMPERATURE
From – 20 to + 60 °C
STEM PRESSURE RATING
25 bar (without thermowell)
STANDARD FEATURES
CASE AND RING
Material: AISI 304 ss
Style: bayonet ring
Protection class: IP 65 (EN 60529 / IEC 529)
TEMPERATURE ELEMENT
Coiled bimetal
POINTER
Black aluminium
Fixed or adjustable
ZERO ADJUSTMENT
External on the back of case or through adjustable pointer
WINDOW
Glass 4 mm thickness
STEM
AISI 316 ss
STEM DIAMETER
6 – 6.4 – 8 – 10 – 12 mm for stem lengths over 1 m diameter 8 – 10 – 12 mm only
STEM LENGTHS
Standard lengths from 90 to 600 mm depending on ranges, over 600 mm on request
CONNECTIONS
Plain, fixed or adjustable
Back, lower and every-angle
Every-angle connection the dial face can be rotated 360° and angled 180°
THREAD SIZES
½” BSP or NPT–M standard
Sliding on stem or fixed
SERVICE TEMPERATURE
Continuous less than 425 °C
For continuous service over 425 °C, use inert gas type
OVERRANGE LIMITS
Up to 120 °C : 100% F.S.
160 to 300 °C : 50% F.S.
400 to 500 °C : 510 °C
UNIT OF MEASUREMENT
Degree Celsius or Fahrenheith
OPTIONAL EXTRAS
Case & stem filled with: glycerine (+15 to+160 °C) (1)
silicon oil (-45 to+250 °C) (1)
fluorolube (-40 to +200°C) (1)
Case and ring AISI 316 ss
Other thread sizes
Dual scale °C / °F
Safety glass
Plastic window (not for ATEX version)
Thermowells (see TW data Sheet) according to user specification.
ATEX version (2)
II 2 GD c
Note:
(1) Temperature ranges
(2) ATEX version
II 2 GD c Installation with thermowell only

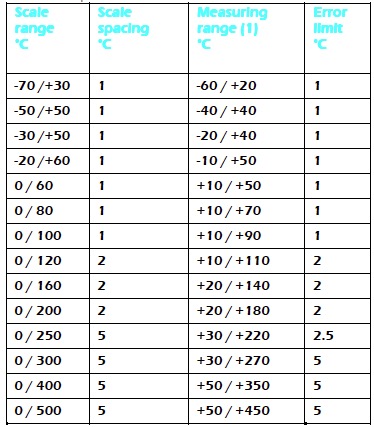

TEMPERATURE RANGES
Scale, measuring range, limit of error per EN 13 190 class 1
(1) The measuring range is indicated on dial by two triangular marks. Within this range the stated limit of error is valid according to EN 13190

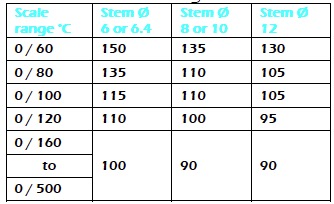

STEM LENGTHS TABLE
Minimum stem length mm
NOTE::
For shorter length ask our technical dept.
For compound range, like –20 to 60°C, the stem length minimum is the same as 0/80 °C, by considering the total spam.
